Ball Bearing Butt Hinge Urn Finial Intumescent 100x75x6mm Imitation Bronze

A ball bearing butt hinge with urn finial and intumescent pads, measuring 100 x 75 x 6mm in imitation bronze. The integrated intumescent pads expand under heat to seal the hinge recess and maintain the fire integrity of a fire-rated door installation, making this hinge suitable for use on FD30 and FD60 fire doors without the need for separate intumescent liners. The urn finial adds a traditional, decorative detail suited to period and classic door styles.

Supplied as a single hinge. Sold in pairs or sets as required.

• Type: Ball bearing butt hinge with intumescent pads
• Finial: Urn

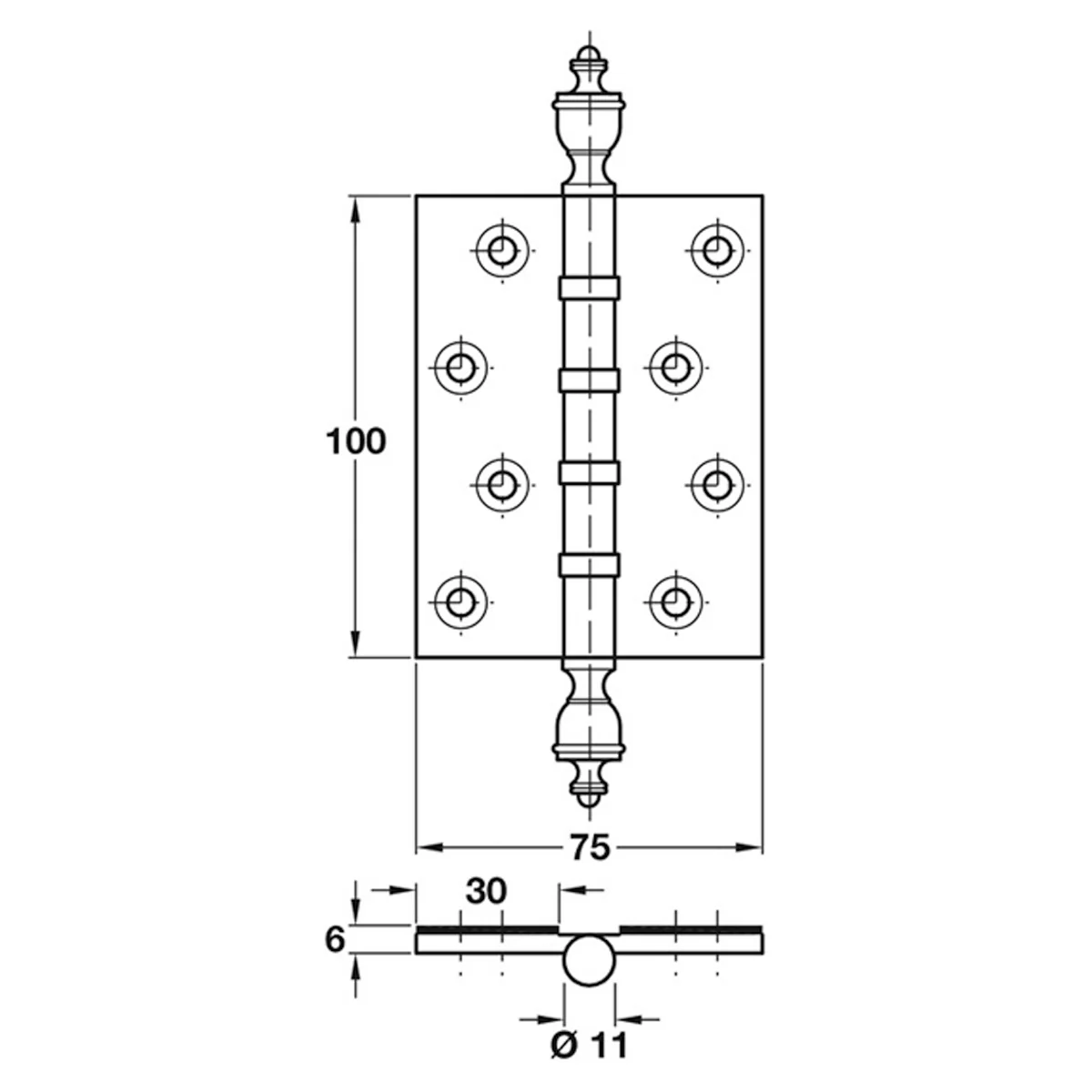

• Dimensions: 100 x 75 x 6mm
• Finish: Imitation bronze
• Fire rating: Suitable for fire-rated doors

Also available in Satin Chrome. For ball finial versions, see the Ball Bearing Butt Hinge Ball Finial Intumescent Polished Brass. Browse the full fire door hardware range.
